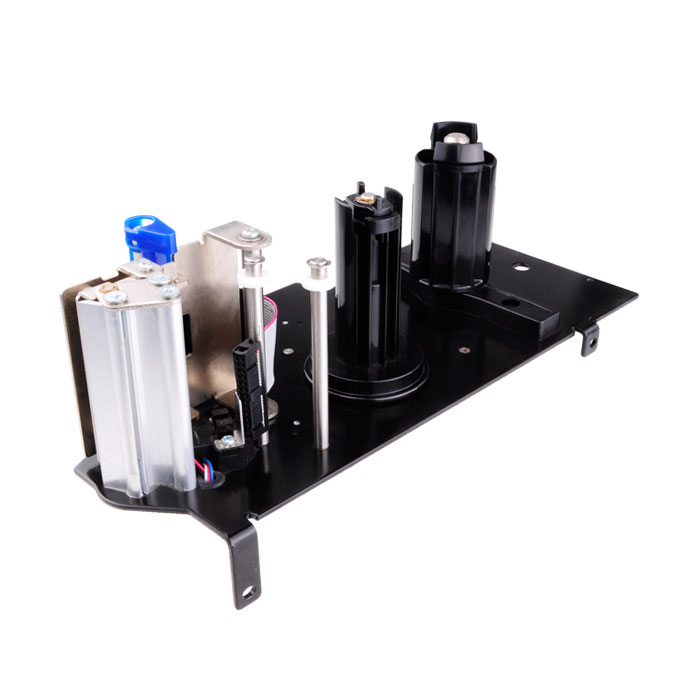

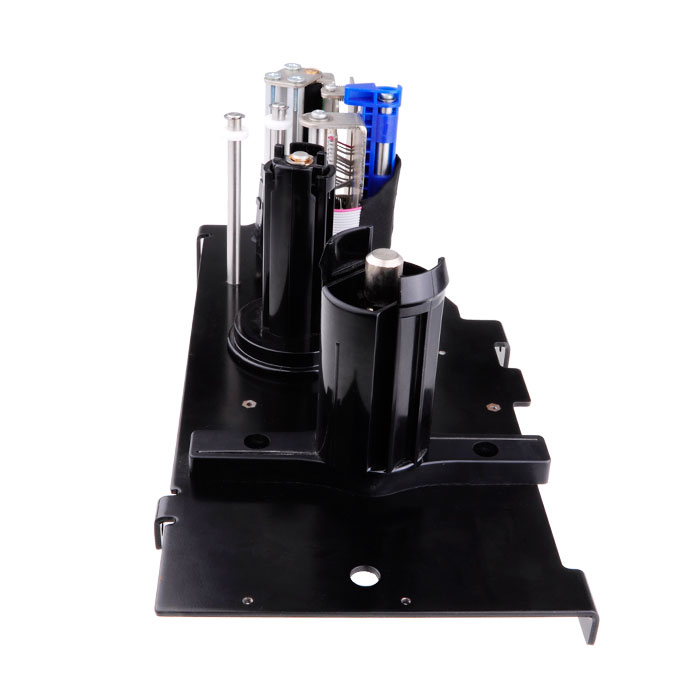

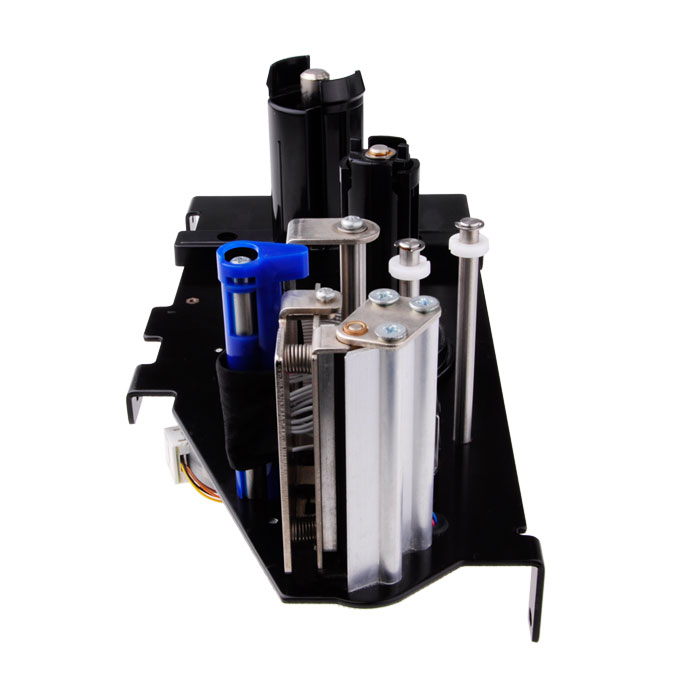

2 inch Label Printer Mechanisms


    1.operating voltage range
  • The range of operating voltage is 21.6~26.5V and the range of logic voltage is 3.0~5.5V.
  •
  • 2. Printing with High resolution
  • A high-density printer head of 8 dots/mm makes the printing clear and precise
  •
  • 3. High speed printing
  • According to driving power and sensitivity of thermal paper, set different printing speed required.
  • Max printing speed is 150mm/ sec.
  •
  • 4. Easy paper loading
  • Detachable rubber roller structure makes the paper loading easier
  • EMAIL   INQUIRY

Specification

Model

RY562

PRINTING CHARACTERISTICS


Print Method

Direct line thermal

Resolution

8 dots/mm

Max. Printing Width

56mm

Number of Dots

448

Max. Printing  Speed

Max. 150 mm/s

MEDIA


Media Type

Label/Receipt Paper

Paper Width

Max. 63mm

Paper Roll Inner Diameter

12.5mm or 40.5mm

Paper Roll Outside Diameter

120 mm

Media Total Thickness

Max. 150um

DETECTION


Head Temperature

By thermistor

Paper Out

By photo sensor

Platen Open

By mechanical SW

Paper Taken

NA

POWER SUPPLY


TPH Logic Voltage

3.0V - 5.5V

Drive Voltage

24V±10%

PEAK CURRENT


Head(Max.)

3.39A(24V/96dots)

Motor

750mA

RELIABILITY


Pulse Activation

100 million

Abrasion Resistance

100KM

ENVIRONMENTAL


Operating Temperature

0 - 50℃

PHYSICAL CHARACTERISTICS


Dimensions(W*D*H)

280*140*129.4mm

Mass

522g
