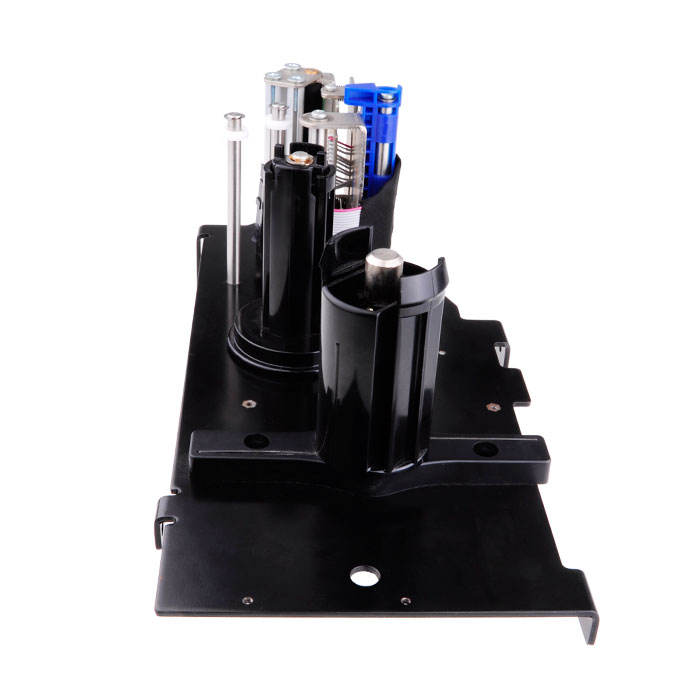

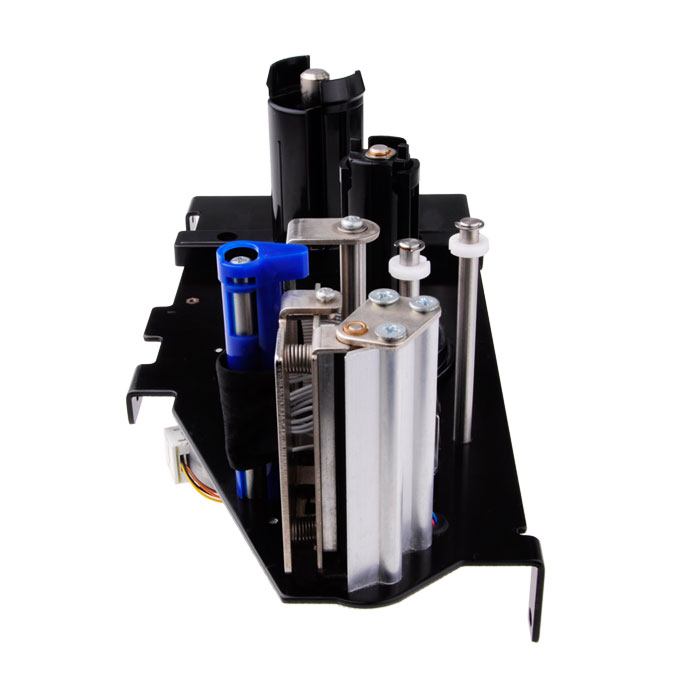

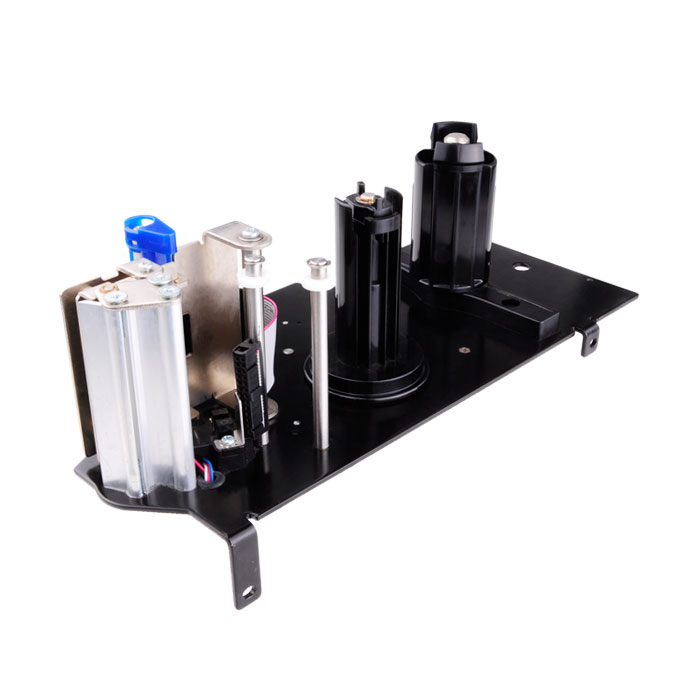

3 inch Label Printer Mechanisms
-
1.operating voltage range
- The range of operating voltage is 21.6~26.5V and the range of logic voltage is 3.0~5.5V.
- 2. Printing with High resolution
- A high-density printer head of 8 dots/mm makes the printing clear and precise
- 3. High speed printing
- According to driving power and sensitivity of thermal paper, set different printing speed required.
- Max printing speed is 120mm/ sec.
- 4. Easy paper loading
-
Detachable rubber roller structure makes the paper loading easier
Specification
Model | RY802 |
PRINTING CHARACTERISTICS | |
Print Method | Direct line thermal |
Resolution | 8 dots/mm |
Max. Printing Width | 72mm |
Number of Dots | 576 |
Max. Printing Speed | Max. 120 mm/s |
MEDIA | |
Media Type | Label/Receipt Paper |
Paper Width | Max. 84 mm |
Paper Roll Inner Diameter | 12.5mm or 40.5mm |
Paper Roll Outside Diameter | 120 mm |
Media Total Thickness | Max. 150um |
DETECTION | |
Head Temperature | By thermistor |
Paper Out | By photo sensor |
Platen Open | By mechanical SW |
Paper Taken | NA |
POWER SUPPLY | |
TPH Logic Voltage | 3.0V-5.5V |
Drive Voltage | 24V±10% |
PEAK CURRENT | |
Head(Max.) | 3.39A(24V/96dots) |
Motor | 750mA |
RELIABILITY | |
Pulse Activation | 100 million |
Abrasion Resistance | 100KM |
ENVIRONMENTAL | |
Operating Temperature | 0 - 50℃ |
PHYSICAL CHARACTERISTICS | |
Dimensions(W*D*H) | 292.8*140*145mm |
Mass | 1629g |
