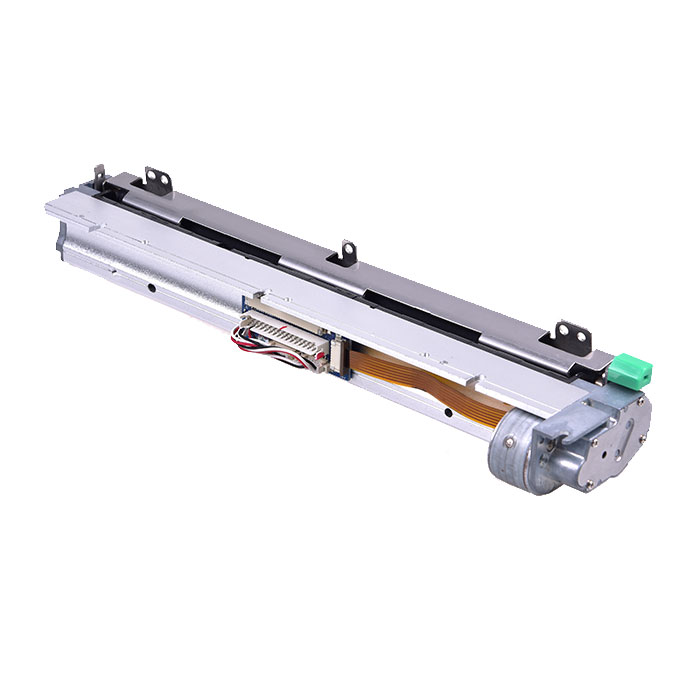

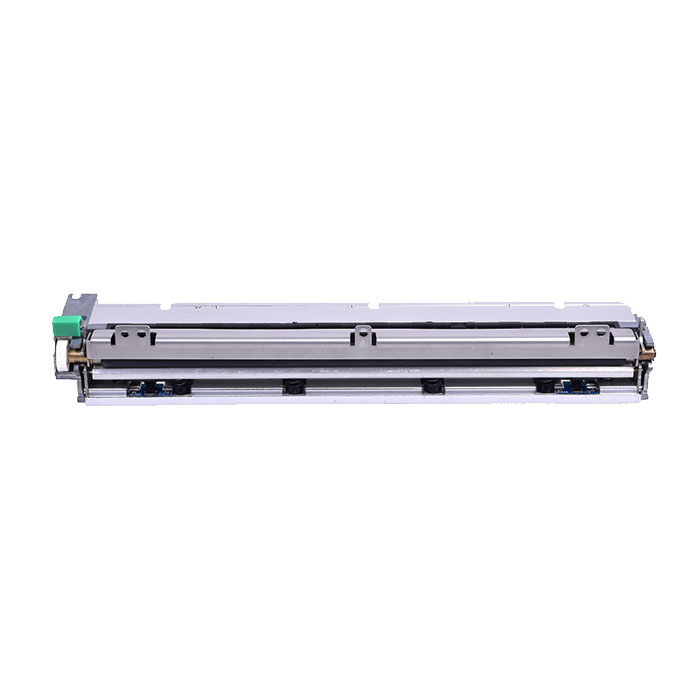

8 inch Thermal Printer Mechanisms
-
1. Supply voltage range
- The range of heating operation voltage is 24V and the range of logic voltage is 3.0V~5.0V.
- 2. High resolution printing
- A high-density printer head of 8 dots/mm makes the printing clear and precise.
- 3. Printing speed adjustable
- According to driving power and sensitivity of thermal paper, set different printing speed required. The max speed is 50mm/s.
- 4. Easy paper loading

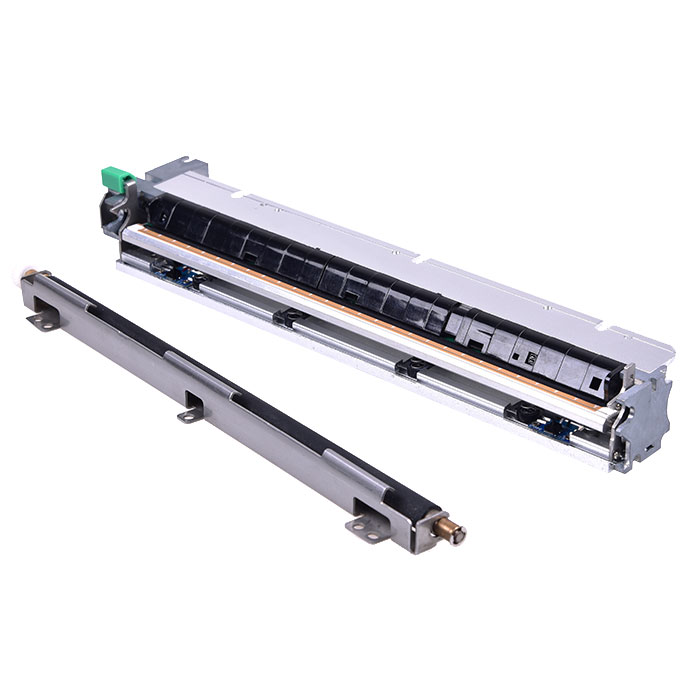

- Detachable rubber roller structure makess the paper loading easier.
- 5. Low noise
-
Thermal line dot printing is used to guarantee low-noise printing
Specification
Series Model | RY2161P |
PRINTING CHARACTERISTICS | |
Print Method | Direct line thermal |
Resolution | 8 dots/mm |
Max. Printing Width | 216mm |
Number of Dots | 1728 |
Paper Width | 210mm~216mm |
Max. Printing Speed | 50mm/s |
Paper Path | Curved |
DETECTION | |
Head Temperature | By thermistor |
Paper Out | By photo sensor |
Platen Open | By mechanical SW |
POWER SUPPLY | |
TPH Logic Voltage | 3.0V-5.5V |
Drive Voltage | 24V±10% |
PEAK CURRENT | |
Head(Max.) | 8.0A(24V/480dots) |
Motor | 500mA |
RELIABILITY | |
Pulse Activation | 100 million |
Abrasion Resistance | 50KM |
ENVIRONMENTAL | |
Operating Temperature | 0 - 50℃ |
PHYSICAL CHARACTERISTICS | |
Dimensions(W*D*H) | 264.5*55.9*37.3mm |
