Fast Print speed

50mm/s

Resolution

203dpi

Point distance

0.125mm

Valid print width

48mm

Paper

Thermal receipt roll paper, thermal sticker paper

Print material

Paper width

Bill: 58mm Label: 50mm, 40mm, 30mm

Paper thickness

0.05-0.18mm

Paper roll outer diameter

Max 40mm

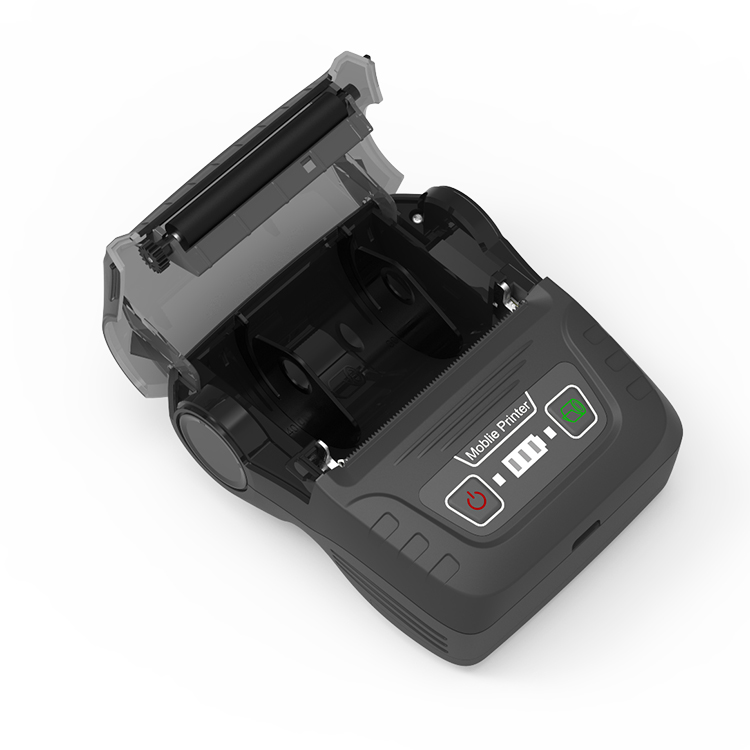

Paper loading

Clamshell paper loading, easy loading paper

Out paper type

Top exit; thermal side facing out

Cutter type

Plastic tear knife, manual tear off

Print comment

Font English

Height：16，20，24，28

Font Chinese

Height：16，20，24，28

Encoding

ASCII；GBK（GB18030 double）；Unicode

Print characters

English, Chinese characters, numbers, various symbols

Rotation print

0 degree，90 degree，180 degree，270 degree

Bar code

EAN－8、EAN－13、ITF、UPC－A、UPC－E、Code bar、Code93、Code39、Code128

2D bar code

QR Code, PDF417, Data Matrix, Grid Matrix

Bitmap

Black and white bitmap (line, curve, table, picture)

Physical characteristics

Machine Size

101.8mm*86.7mm*48mm

Bare metal weight

188g(Including battery without paper)

Package Size

123.5mm*106.5mm*52.5mm

With package weight

255g

Carton Size

535mm*344mm*182mm

Carton Quantity

36

Carton Weight

9.8kg

Interactive interface

Input

2 pc Key button

Output

Status indicator, battery indicator

USB Communication Interface

USB-Type-C

Wireless communication interface

Bluetooth 2.0+4.2 dual-mode Bluetooth

Label detect

Reflective label detection, no virtual slit, label slit >=2mm

Black mark detect

The middle black mark detection, the black mark is on the printing surface, the position reference picturea

Warning

Out of paper prompt; open cover detection; low battery prompt; overheat prompt

Command

ESC/POS  CPCL

Power

Battery capacity

3.7V 2000mAh Lithium

Battery removable capacity

Detachable

Adapter

Input: AC 100-240V 0.5A，Output：DC 5V1A

Data line

USB-Type-C

Environmental parameters

Operating temperature

0～50 °C

Storage temperature

－20～60°C

Operating humidity

35%～85% No condensation

Storage humidity

10%～90% No condensation

Reliability

Print life

50Km（1 2.5% Print density）/ 100million pulse

Battery lift

300 cycles of charge and discharge > 60% battery

One charge print length

About 100m (12.5% printing density)

Certification

CCC

Other data

Print data setup

Use button settings

Charging time

4 hours

Standby time

60 hours
