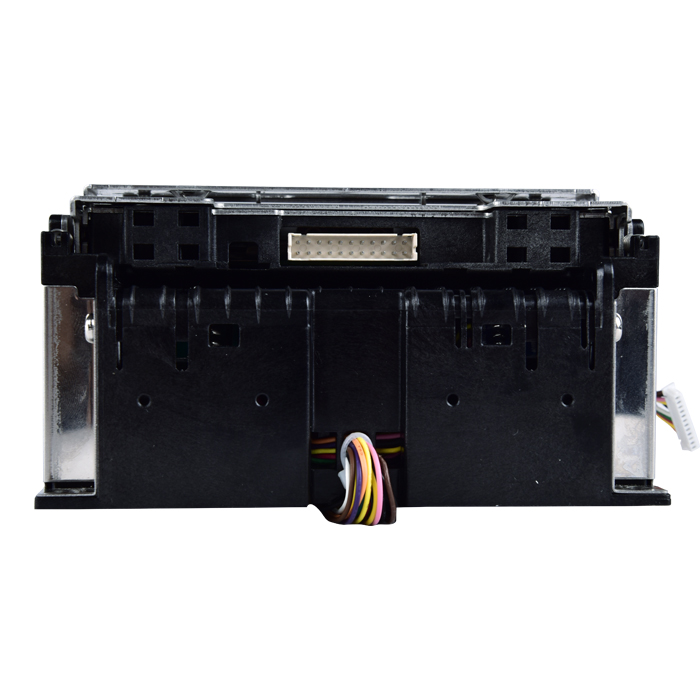

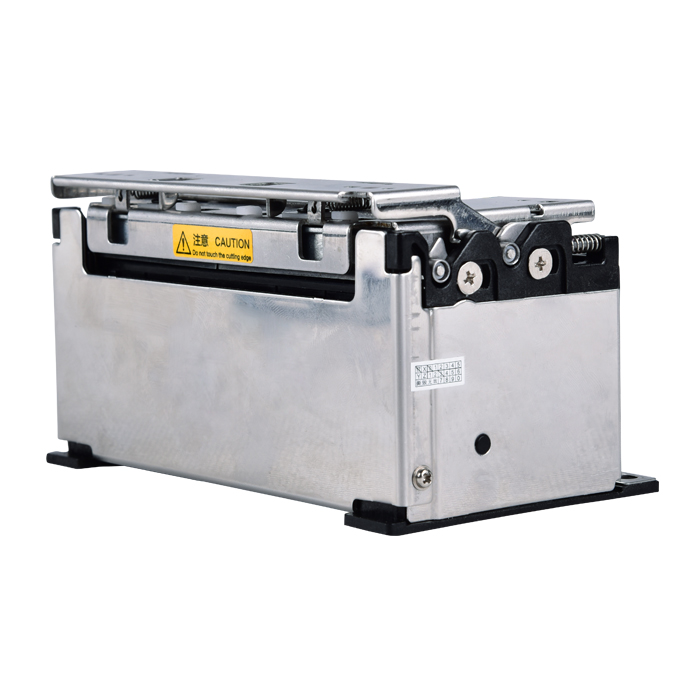

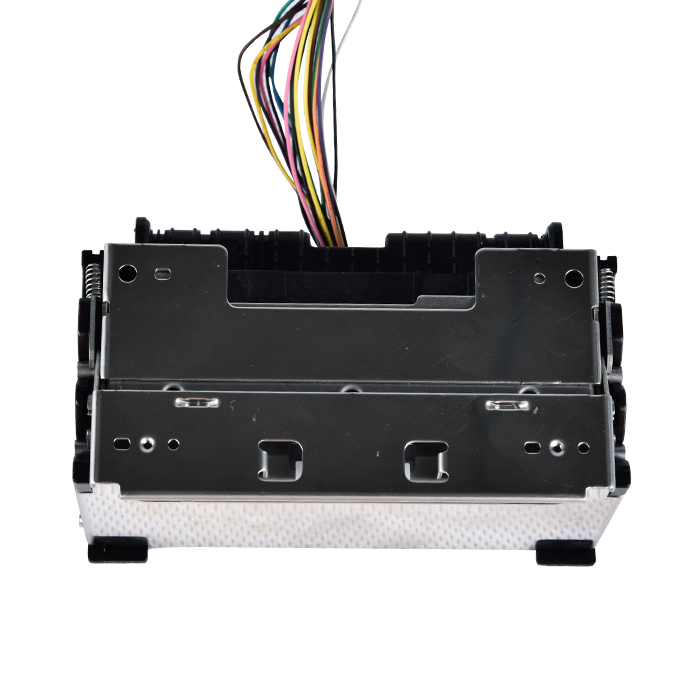

3 inch with auto-cutter Thermal Printer Mechanisms


    1.Operating voltage range
  • The range of operating voltage is 24V and the range of logic voltage is 2.7V~5.5V.
  •
  • 2.Low volume compact and light
  • The mechanism is compact and light.
  • Dimensions:110.0mm(width)*61mm(depth)*55.9mm(height).
  •
  • 3.High resolution printing
  • A high-density printer head of 8dots/mm make the printing clear and precise.
  •
  • 4.Printing speed adjustable
  • According to driving power and sensitivity of thermal paper, set different printing speed requires. The max speed is 300mm/sec.
  •
  • 5.Easy paper loading
  • Detachable rubber roller structure makes the paper loading easier.
  • EMAIL   INQUIRY

Specification

Series Model

RY72A

PRINTING CHARACTERISTICS


Print Method

Direct line thermal

Resolution

8 dots/mm

Max. Printing Width

80mm

Number of Dots

640

Paper Width

82.5±0.5mm

Max. Printing  Speed

300mm/s

Paper Path

Straight

DETECTION


Head Temperature

By thermistor

Paper Out

By photo sensor

Platen Open

By  hoto sensor

Cutter Home Positon

By  hoto sensor

Black Mark

By photo sensor

POWER SUPPLY


TPH Logic Voltage

2.7V-5.5V

Drive Voltage

24V ± 10%

PEAK CURRENT


Head(Max.)

5.6A(26.4V/144dots)

Paper Feeding Motor

Max. 1.2A

Cutter Motor

Max. 1.1A

AUTO CUTTER


Method

Slide type

Paper Thickness

50um-90um

Cutting Type

Full/Partial cut

Operating Time (Max.)

Approx. 0.4s

Cutting Pitch (Min)

20mm

Cut Frequency (Max.)

30cuts/min.

RELIABILITY


Pulse Activation

200 million

Abrasion Resistance

200KM

Paper Cutting

2,000,000 cuts

ENVIRONMENTAL


Operating Temperature

-15 - 50℃

PHYSICAL CHARACTERISTICS


Dimensions(W*D*H)

110*61*55.9mm

Mass

500g
